Conveyor Controller
- > Found my passion for electronics and PCB design
- > Creating mobile applications
- > Got way better at soldering
- > Learned to host a ESP8266 WebServer and control the microcontroller through it
- > Learned the importance of state diagrams
This project is my Bachelor’s thesis where I was tasked with designing an intuitive device which controls the movement of conveyors through a mobile app, so mechanical engineers have an easier time when commissioning conveyor installation quality (specifically when they are looking if the conveyor runs smoothly).

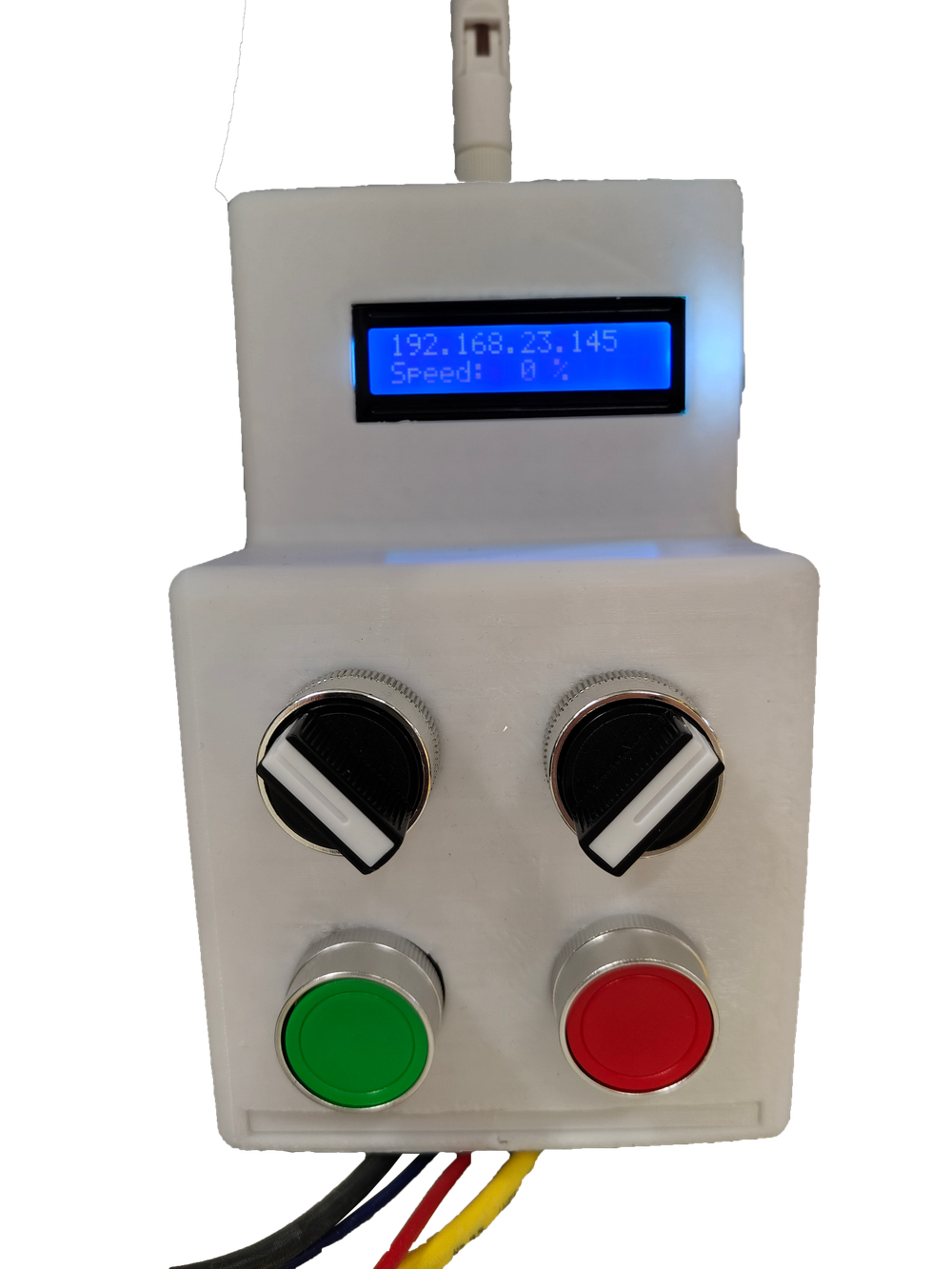

I made my own PCB, added in a WEMOS D1 Mini development board with an ESP8266 microcontroller unit, wired everything with relays so I am able to switch the control panel inputs to the frequency drive and I created the app through which it can all be controlled thanks to a shared WiFi hotspot that all the devices are connected to.
A cool thing about this project is that the mobile app not only enables me to control the conveyor, but it can have all the instructions for setup and troubleshooting the device and parts of the system. And since it’s on mobile you do not need any additional devices :D.
This was a really interesting challenge with lots of different systems that intertwine into each other and it was my hardest challenge where I was solving the most issues :D.
